Description

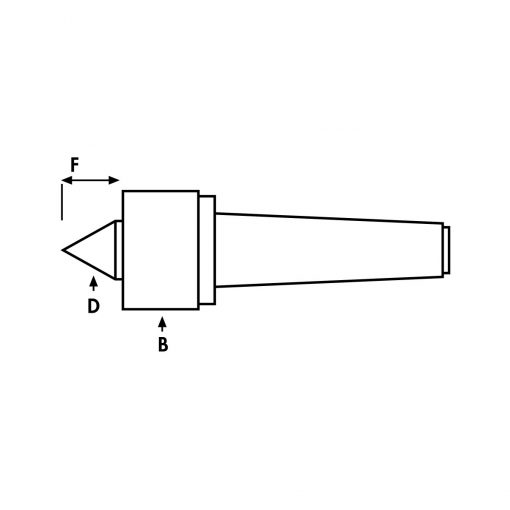

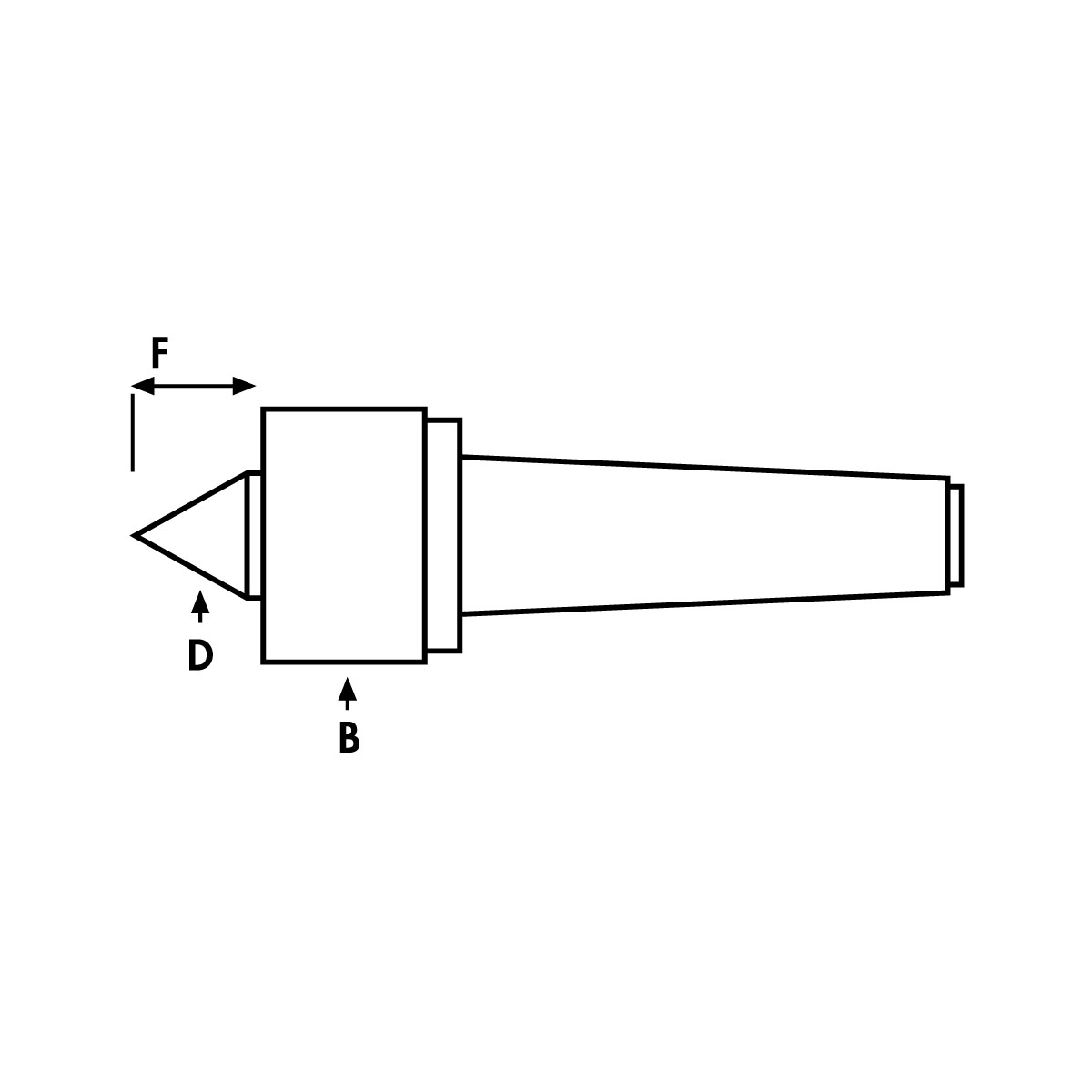

| PART | MT | D | B | F | RPM | WORK PCE | APP.WT |
|---|---|---|---|---|---|---|---|
| LC533 | 3 | 20 (0.81) | 52 (2.05) | 22 (0.86) | 4500 | 500KG (1100lb) | 1.2KG (2.64lb) |
| LC544 | 4 | 25 (1) | 58 (2.28) | 26 (1.02) | 4000 | 1000KG (2200lb) | 1.4KG (3.08lb) |
| LC555 | 5 | 40 (1.58) | 87 (3.42) | 40 (1.57) | 2500 | 4000KG (8800lb) | 3.6KG (7.92lb) |
| LC566 | 6 | 48 (1.89) | 98 (3.86) | 50 (1.96) | 1800 | 7000KG (15400lb) | 6.7KG (14.74lb) |
| LC566VHD | 6 | 70 (2.75) | 148 (5.83) | 68 (2.75) | 1600 | 18000KG (39600lb) | 20KG (44.0lb) |
| LC577 | 7 | 70 (2.75) | 148 (5.83) | 70 (2.75) | 1600 | 20000KG (44000lb) | 23KG (50.6lb) |
